高分辨率線掃描Sensors Unlimited 2048L提供方形像素(10 x 10 μm)用于機器視覺或高像素(10 x 210 μm)，以便于與光譜儀對齊。 這些攝像機通過提供靈活性的Base Camera Link?接口提供每秒100到>76,000的線速。
高分辨率線掃描Sensors Unlimited 2048L提供方形像素(10 x 10 μm)用于機器視覺或高像素(10 x 210 μm)，以便于與光譜儀對齊。 這些攝像機通過提供靈活性的Base Camera Link?接口提供每秒100到>76,000的線速。2048提供光學相干斷層掃描(OCT)或工業機器視覺所需的高分辨率、穩定性和可靠性。 在0.98至1.65 μm的短波紅外(SWIR)波長范圍內提供高均勻靈敏度。 對所有像素的同時采集提供了重要的醫療和工業機器視覺所需的卓越的可重復性和較長的工作壽命。

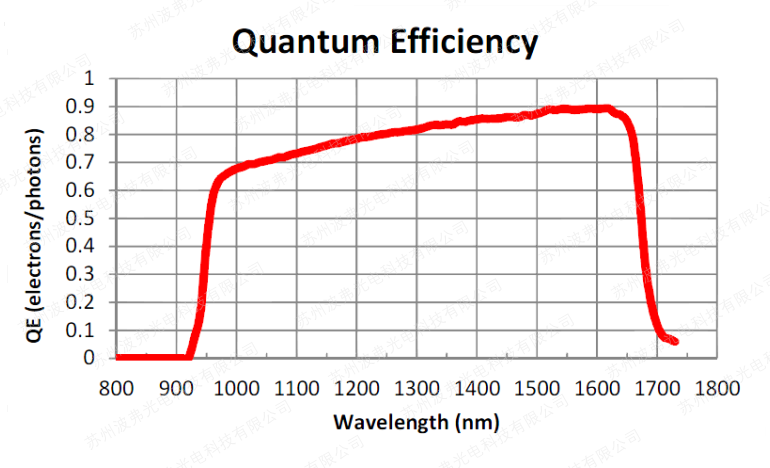

GL2048L | QE（量子效率）
|
OPTO-ELECTRONIC PERFORMANCE |
||||||||
|
Sensor format 1 |
2048 pixels with 2048 readout ADCs on 10 μm pitch |
|||||||
|
Optical aperature (pixel height)1 |
210 μm or 10 μm |
|||||||
|
Quantum efficency1 |
> 60% over 0.98 μm-1.65 μm; > 70% peak response @ 1.55 μm |
|||||||
|
Gain setting Temporal noise (rms counts)1 2 |
High |
Medium High |
Medium Low |
Low |
||||
|
Typical |
Specification |
Typical |
Specification |
Typical |
Specification |
Typical |
Specification |
|
|
3.1 |
< 3.4 |
2.2 |
< 2.8 |
1.9 |
< 2.3 |
1.7 |
< 1.9 |
|
|
Dynamic range1,2 |
|
> 1200:1 |
|
> 1450:1 |
|
> 1750:1 |
|
> 2100:1 |
|
Differential non-linearity1,2 |
+/- 1.1 |
< +/- 2.5% |
+/- 1.5 |
< +/- 2.5% |
+/- 1.5 |
< +/- 2.5% |
+/- 1.5 |
< +/- 2.5% |
|
Bad pixel specification |
White, dark, noisy or pixels exceeding +/- 20 % of the mean value when illuminated at 50% of full well. Number of bad pixels limited to a maximum of 1% of array total; on-board pixel replacement function |
|||||||
|
Exposure time1,3 |
5.5 μs to 10 ms, user programmed in pixel clock cycles or via the width of the ext. trigger |
|||||||
|
Trigger modes 3 |
Free run, single line per trigger (exposure set by camera), or variable exposure |
|||||||
|
External trigger 3 |
Via CC1 signal line in Camera Link cable |
|||||||
|
External variable ET |
User set by the duration of trigger input signal (minimum exposure time pulse: 5.5 μs) |
|||||||
|
External trigger jitter |
+/-2.5 clock cycles: nominally 63 ns variation |
|||||||
|
Pixel rate |
2048L:157 Mpix/s with 2 x 12-bit words transferred on each Camera Link strobe clock at 80 MHz |
|||||||
|
Digital output format |
12-bit base Camera Link?; recommend NI PCIe-1433 or frame grabber with throughput of > 313 Mbytes/s to PC motherboard (minimum of 4 bi-directional PCIe express lanes in PC) |
|||||||
|
Readout mode |
Integrate-While-Read, differential double sampling |
|||||||
|
Corrections (preset OPR) |
Factory calibrated gain, offset, and bad pixel replace. |
|||||||
1 Actual formats and performance governed by pixel size options (dark current may limit longest usable ET, especially at high gain);
2 Camera readout noise limited for low & medium gain settings; dark shot noise limited for high gain settings at longer exposure times
3 Modes are user selectable by command over Camera Link? serial lines
|
INTERFACES |
|
|
Control: & Data |
GL2048L: Single SDR 26-pin connector |
|
Power Connector |
CUI Inc. PJ-056, 1.0mm X 3.8mm power jack |
|
Trigger: Input |
Via Camera Link CC1 line |
|
Status LED: |
Green: Power on |
|
Tested Framegrabbers |
Nat. Instruments PCIe-1429, -1433, Matrox Solios eV-CL PCIe-X4 |
*
|
REGULATORY COMPLIANCE |
|
|
CE: |
Meets class A for emission, immunity & ESD standards, RoHS |
|
FCC: |
Meets requirements for Part 15, Subpart B, Class A, 2006 |
*
|
ENVIRONMENTAL & POWER |
|
|
Operating Case Temperature |
+10°C to +35°C |
|
Storage Temperature |
-10°C to 60°C |
|
Humidity |
Up to 95% and non-condensing |
|
Power Requirements: |
100–240 VAC, 47–63 Hz |
|
In-rush Current |
1.25 A @ 12 VDC |
*
|
MECHANICAL |
|
|
Width x Height x Depth: |
8.3 cm x 10.2 cm x 1.6 cm (excludes I/O connectors, and lens adapter) |
|
Weight: |
< 240 g or 8.6 oz (no lens or adapter) |
|
Threaded Lens Mount |
M42x1-6H (focus point ~6 mm from camera surface) |
|
Optional Lens Mount Adapters |
C-Mount adapter or adjustable distance F-Mount adapter (see ordering info) |
|
Spectrometer Mount |
4 tapped 8-32 holes in 2 inch square pattern, |
|
Camera Tripod |
2 tapped?-20 holes, one on bottom, one on side wall. |
*
|
ORDERING INFORMATION |
|||||||
|
Camera Model |
Part number |
Max. Line rate |
Pitch |
Pixels |
FPA length |
Aperture (height) |
Classification |
|
GL2048L-10A-ENC-STD-210 |
8000-0596 |
76,263 lps |
10 μm |
2048 |
20.48 mm |
210 μm |
EAR99 |
|
GL2048L-10A-ENC-STD-010 |
8000-0597 |
76,263 lps |
10μm |
2048 |
20.48 mm |
10 μm |
6A003.b.4.a |
Included items in qty 1-4: Power supply, lens cap, ESD foam-lined shipping box, mini-CD with manual and SUI Image Analysis software for National Instruments IMAQ environment.
Order lens adapters separately for additional charge:
Part Numbers: Adjustable F-mount adapter: 8000-0171. C-mount adapter: 3800-0002
SUI’s linescan cameras, accessories, and associated technical data are subject to the controls of the Export Administration Regulations(EAR). Export, re-export or transfer of these items by any means to a foreign person or entity, whether in the United States or abroad, without appropriate Department of Commerce authorization, is prohibited and may result in substantial penalties.
